Installation of Oracle Applications R12.1.1 on Linux and vmware
This is a single node Installation. (All services will be hosting on same machine 0 db, conc, web, forms etc)
I have Installed it on a virtual machine with 4gb ram, 120 GB of local disk space and 1 core cpu.
- Requires 80 GB of free space for fresh installation (excluding stage area)
- Requires 100+ GB of free space for vision installation (excl. stage)
I will split this configuration in 5 steps:
1) create and configure virtual machine
2) Install linux operating system
3) create stage Area
4) Perform all operating system per-requisites
5) Install oracle E-business suite R12.1.1
create and configure virtual machine:
>> Login to vmware Server console
>> click on add virtual machine
>> Here i have selected iso image for OS Installation, you can select local cd drive if u want.
>> Now the virtual machine is created and ready for Linux Installation

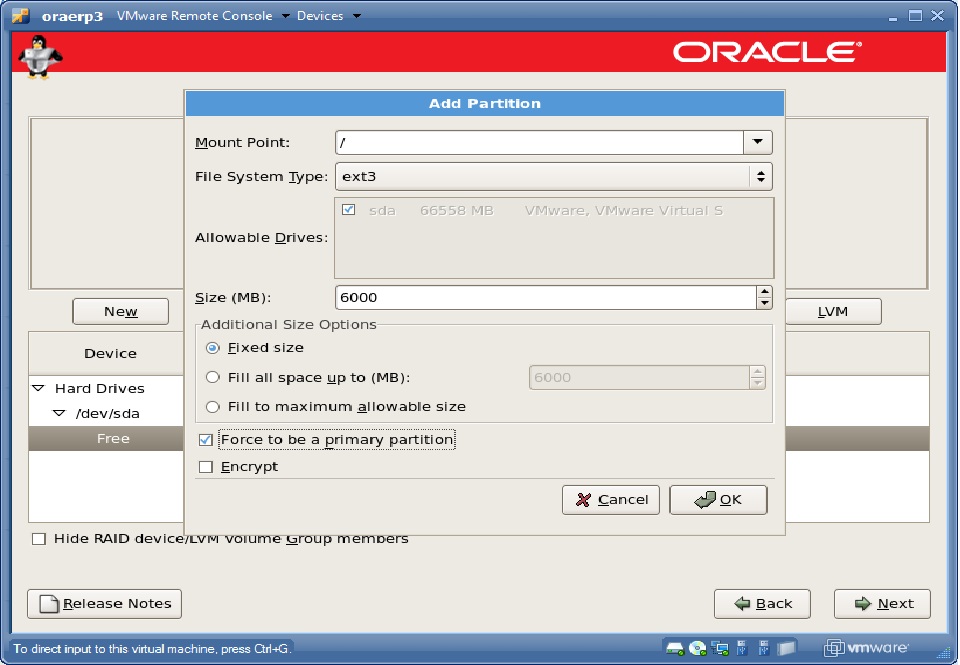

Install Linux operating system:
Here steps to Install Oracle Enterprise Linux 5.6 (32-bit). The below demonstration is for host orerp3 (another virtual machine created for R12 Installation). All steps are similar for all linux hosts.
>> Follow step by step screens:
Perform all operating system per-requisites:
>> create OS group, user and directories:
[root@oraerp1 ~]# groupadd dbaerp
[root@oraerp1 ~]# useradd -G dbaerp applerp
[root@oraerp1 ~]# useradd -G dbaerp oraerp
[root@oraerp1 ~]# passwd applerp
Changing password for user applerp.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
[root@oraerp1 ~]# passwd oraerp
Changing password for user oraerp.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
[root@oraerp1 ~]# mkdir /u01/applR12
[root@oraerp1 ~]# mkdir /u01/oraR12
[root@oraerp1 ~]# chmod -R 775 /u01/applR12/
[root@oraerp1 ~]# chmod -R 775 /u01/oraR12
[root@oraerp1 ~]# chown -R applerp:dbaerp /u01/applR12/
[root@oraerp1 ~]# chown -R oraerp:dbaerp /u01/oraR12/
[root@oraerp1 ~]#
>> configure kernel parameters (Edit /etc/sysctl.conf file):
#All below kernel parameters are related to oracle E-biz
#################
kernel.shmall = 268435456
kernel.shmmax = 429496729
kernel.shmmni = 4096
kernel.sem = 256 32000 100 142
fs.file-max = 327679
net.ipv4.ip_local_port_range = 10000 65000
net.core.rmem_default = 262144
net.core.wmem_default = 262144
net.core.rmem_max = 262144
net.core.wmem_max = 4194304
:wq
[root@oraerp1]# vi /etc/security/limits.conf
* hard nofile 65536
* soft nofile 4096
* hard nproc 16384
* soft nproc 2047
:wq
[root@oraerp1 ~]# sysctl -p
net.ipv4.ip_forward = 0
net.ipv4.conf.default.rp_filter = 2
net.ipv4.conf.default.accept_source_route = 0
kernel.sysrq = 0
kernel.core_uses_pid = 1
net.ipv4.tcp_syncookies = 1
kernel.msgmnb = 65536
kernel.msgmax = 65536
kernel.shmmax = 4294967295
kernel.shmall = 268435456
kernel.shmmax = 429496729
kernel.shmmni = 4096
kernel.sem = 256 32000 100 142
fs.file-max = 327679
net.ipv4.ip_local_port_range = 10000 65000
net.core.rmem_default = 262144
net.core.wmem_default = 262144
net.core.rmem_max = 262144
net.core.wmem_max = 4194304
[root@oraerp1 ~]#
>> Install OS required OS packages (rpm's)
If selected all packages same as the above shown linux Installation package selection, then just need to Install the below rpm's:
[root@oraerp1 Server]# ls -l unixODBC*
-rw-r--r-- 1 root root 850413 Nov 17 2010 unixODBC-2.2.11-7.1.i386.rpm
-rw-r--r-- 1 root root 761234 Nov 17 2010 unixODBC-devel-2.2.11-7.1.i386.rpm
-rw-r--r-- 1 root root 573232 Nov 17 2010 unixODBC-kde-2.2.11-7.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh unixODBC-2.2.11-7.1.i386.rpm
warning: unixODBC-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:unixODBC ########################################### [100%]
[root@oraerp1 Server]# rpm -ivh unixODBC-devel-2.2.11-7.1.i386.rpm
warning: unixODBC-devel-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:unixODBC-devel ########################################### [100%]
[root@oraerp1 Server]# ls -l openmotif*
-rw-r--r-- 1 root root 1374499 Nov 17 2010 openmotif22-2.2.3-18.i386.rpm
-rw-r--r-- 1 root root 1610158 Nov 3 2010 openmotif-2.3.1-5.el5_5.1.i386.rpm
-rw-r--r-- 1 root root 3102338 Nov 3 2010 openmotif-devel-2.3.1-5.el5_5.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh openmotif22-2.2.3-18.i386.rpm
warning: openmotif22-2.2.3-18.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
error: Failed dependencies:
libXp.so.6 is needed by openmotif22-2.2.3-18.i386
[root@oraerp1 Server]# ls -l libXp*
-rw-r--r-- 1 root root 22852 Nov 17 2010 libXp-1.0.0-8.1.el5.i386.rpm
-rw-r--r-- 1 root root 15103 Nov 17 2010 libXp-devel-1.0.0-8.1.el5.i386.rpm
-rw-r--r-- 1 root root 46410 Nov 17 2010 libXpm-3.5.5-3.i386.rpm
-rw-r--r-- 1 root root 31307 Nov 17 2010 libXpm-devel-3.5.5-3.i386.rpm
[root@oraerp1 Server]# rpm -ivh libXp-1.0.0-8.1.el5.i386.rpm
warning: libXp-1.0.0-8.1.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:libXp ########################################### [100%]
[root@oraerp1 Server]# rpm -ivh libXp-devel-1.0.0-8.1.el5.i386.rpm
warning: libXp-devel-1.0.0-8.1.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:libXp-devel ########################################### [100%]
[root@oraerp1 Server]# rpm -ivh openmotif22-2.2.3-18.i386.rpm
warning: openmotif22-2.2.3-18.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:openmotif22 ########################################### [100%]
[root@oraerp1 Server]# rpm -ivh libaio-devel-0.3.106-5.i386.rpm
warning: libaio-devel-0.3.106-5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:libaio-devel ########################################### [100%]
[root@oraerp1 Server]# ls -l sysstat-7.0.2-3.el5_5.1.i386.rpm
-rw-r--r-- 1 root root 174229 Nov 17 2010 sysstat-7.0.2-3.el5_5.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh sysstat-7.0.2-3.el5_5.1.i386.rpm
warning: sysstat-7.0.2-3.el5_5.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
1:sysstat ########################################### [100%]
[root@oraerp1 Server]#
>> download and Install patch "6078836" from MOS:
[root@oraerp1 6078836]# pwd
/u01/sw_home/6078836
[root@oraerp1 6078836]# ls
libdb.so.2 README.txt
[root@oraerp1 6078836]# ls -l /usr/lib/libdb.so.2
ls: /usr/lib/libdb.so.2: No such file or directory
[root@oraerp1 6078836]# cp libdb.so.2 /usr/lib/
[root@oraerp1 6078836]# ls -l /usr/lib/libdb.so.2
-rw-r--r-- 1 root root 5825 Nov 27 11:38 /usr/lib/libdb.so.2
[root@oraerp1 6078836]#
- This is because there is missing library file which is required for R12 Install
>> Run xhost + command to enable GUI windows:
[root@oraerp1 ~]# xhost +
access control disabled, clients can connect from any host
[root@oraerp1 ~]#
>> Create stage Area:
There are two ways we can create stage for R12
1. Stage using script adautostage.pl from start here CD
2. Manual stage - create directories and copy media as listed below
[root@oraerp1 Dumps]# cd R12.1.1_X86/
[root@oraerp1 R12.1.1_X86]# ls
oraAppDB oraApps oraAS oraDB startCD
[root@oraerp1 R12.1.1_X86]#
startCD - copy Start Here Disk
oraApps - copy APPL_TOP Disk1, Disk2
oraAS - copy TOOLS Disk
oraDB - copy RDBMS Disk
oraAppDB - copy Databases Disk1 to Disk9
- I have created the stage area in an external drive
>> Install oracle E-business suite R12.1.1:
>> Run rapidwiz from the satge area
[root@oraerp1 Disk1]# cd rapidwiz/ [root@oraerp1 rapidwiz]# ls adautostg.pl driver images oui RapidWiz.ini template bin etc jlib rapidwiz RapidWizVersion unzip ClientWiz.cmd File jre RapidWiz.cmd RapidWizVersion.cmd [root@oraerp1 rapidwiz]# pwd /media/DATA_STORE/Dumps/R12.1.1_X86/startCD/Disk1/rapidwiz [root@oraerp1 rapidwiz]# ./rapidwiz
>> Follow the Installation screens
This article will be helpful for the beginners who want to learn how to Install oracle E-business suite R12.1.1 on Linux platform on their personal computers/laptops and also for those who want to deploy in an Enterprise server environment.
Your comments are highly appreciated if you have any queries/suggestion in regards with this article.
thanks.
Happy reading :)
